20 years OEM experience with North American Builders, REO contractors & Wholesalers.
ZHONGSHAN GHL HARDWARE PRODUCTS CO., LTD.
Standard sizes

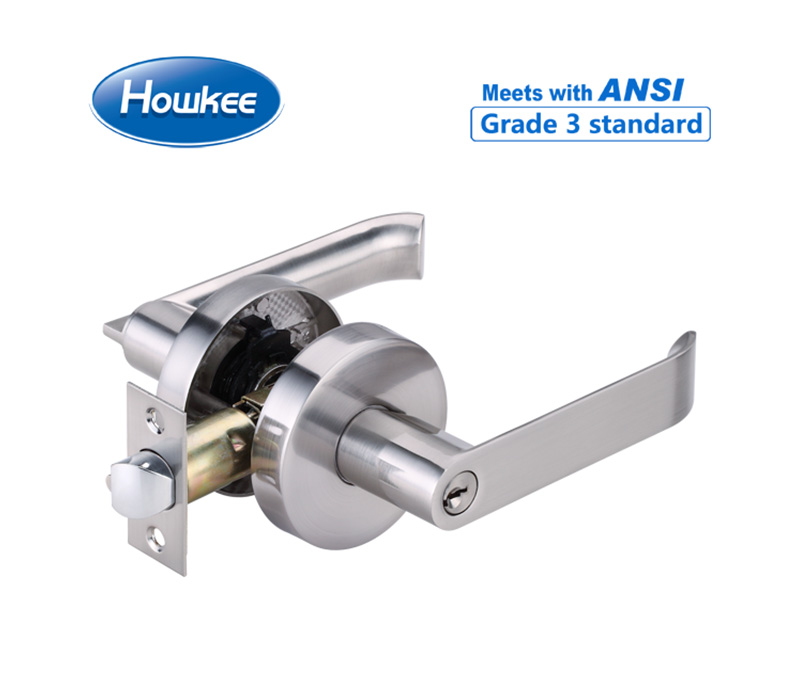

product description
| Material: | Zinc Alloy Handles, Zin Alloy roses. | |||
| Function: | Entrance/ Bathroom/Passage/Dummy | |||
| Keyway: | Schlage, kwikset, yale, weiser keyway available. | |||
| Cylinder & Key: | 5-pin tumbler cylinder, brass plug w. 2 nickle-plated brass key. Removable for rekeying. | |||
| Keying: | KD / KA as usual, construction / master key upon request. | |||
| Finish: | US3, US4, US5, US10B, US11, US15, US15A, US26,US26D, US32, US32D | |||
| Latch: | Adjustable latch w. 2 3/8" & 2 3/4" backset as usual. | |||
| Drive-in latch, 4-way latch & 6-way latch available upon request. | ||||
| Door Thickness: | from 1 3/8" (35mm) to 1 3/4" (45mm) | |||
| Can be furnished for doors over 1 3/4" (45mm) when so ordered. | ||||
| Installation: | 2 1/8" (54mm) diameter cross bore, 1" (25.4mm) diameter edge bore. | |||
| Handing: | Non-Handed. LH-left handed (hinges on left, as viewed from the exterior side of the door). RH-right handed (hinges on right, as viewed from the exterior side of the door). | |||
| Packaging; | Paper box as usual, visual packs available upon request. | |||
| MQR: | 1000pcs | |||
