  • Cylindrical Lever 9 Series 9069 PBBN BK

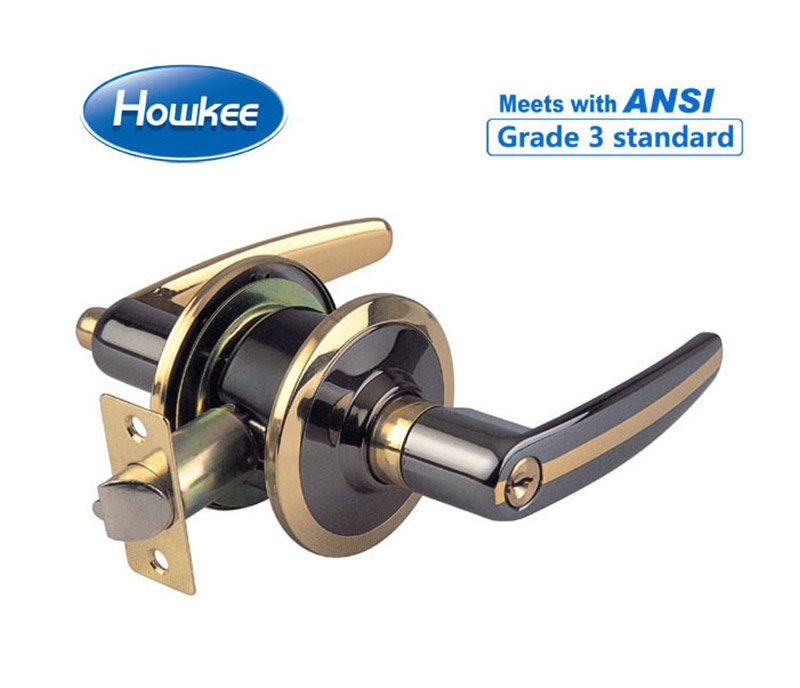

Cylindrical Lever 9 Series 9069 PBBN BK

Standard sizes

Cylindrical Lever 9 Series 9069 PBBN BK

product description


Material:Zinc Alloy Handles with brass or stainless steel roses.
Function:Entrance/ Bathroom/Passage/Dummy
Keyway:Schlage, kwikset, yale, weiser keyway available.
Cylinder:Brass plug w. 2 nickle-plated brass key.
Keying:KD / KA as usual, construction / master key upon request.
Finish:US3,US4,US10B, US11, US15, US15A, US26,US26D, US32, US32D
Latch:Either 2 3/8" (60mm) backset or 2 3/4" (70mm) backset latch as usual.
Door Thickness:

from 1 3/8" (35mm) to 1 3/4" (45mm).

Can be furnished for doors over 1 3/4" (45mm) when so ordered.

Packaging;Paper box as usual, visual packs available upon request.
MQR:1000pcs



What is Cylindrical Lock With Lever Handle?


Cylindrical locks require drilling a cylindrical hole in the face of the door for the lock chassis, and then prepare a separate preparation for the latch on the edge of the door. Cylindrical Lock With Lever Handle is also sometimes called "drill locks" because of the way they are prepared. Most locking features fit into the same door preparation.

What is the difference between a mortise lock and a cylinder lock?

In mortise locks you only need to turn a lever to unlock the latch and latch, but in cylinder locks, you have to lock and unlock the latch and latch separately. Overall, we can easily say that mortise locks are stronger and more secure than cylindrical locks.
